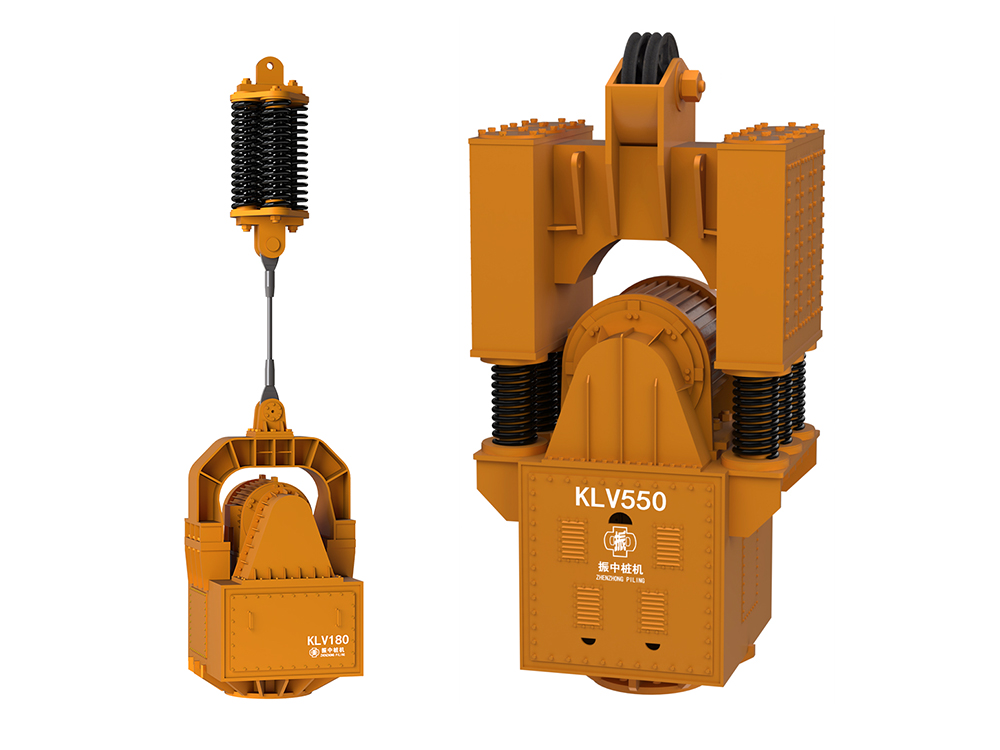

KLV sand/gravel pile vibratory hammer

Product Introduction

KLV series is a new vibratory pile hammer for compacted sand pile/gravel pile developed by our company by introducing Japanese technology. Under the vibration of the vibrating pile hammer, the casing is driven into the specified design depth. After the casing is inserted into the soil, the soil around the casing is compacted, and then sand is put in, and the sand is discharged into the soil. After forming a pile, after many cycles, it becomes a compacted sand pile or a gravel pile. The vibratory sinking casing sand pile is a new sand pile construction technology developed in recent years. The casing is driven into the specified design depth under the vibration of the vibratory hammer. The soil around the casing is compacted. The sand is then placed in the casing and compacted by vibration. After the casing is pulled out, a sand pile is formed. After repeated many times, compacted sand piles are formed. This method has good compaction and vibration effects. A good composite foundation is formed between the pile and the soil, which can improve the bearing capacity of the foundation of the site, prevent the liquefaction of sand and soil, and increase the overall stability of the soft foundation soil. In addition to pure sand, sand pile materials also include sandstone and lime sand. Sand and gravel piles form lime sand piles with sand and gravel materials. As time increases, the degree of solidification of the soil increases, and the strength of lime sand piles increases. It can compact the foundation and improve the bearing capacity of the foundation. Compared with pure sand piles, the particle gradation of sand-stone piles is better, the pile density is higher, and the strength of single piles is improved. Sand piles are suitable for loose sand, silty soil, plain soil, mixed soil, clay foundation, etc. It can be used for foundation reinforcement of industrial and civil buildings such as bulk cargo yards, embankments, docks, oil tanks, workshops, and residences.

Product Parameters

Application Scope

Applicable to loose sand, silty soil, plain soil, mixed soil, clay foundation, etc. It can be used for foundation reinforcement of industrial and civil buildings such as bulk cargo yards, embankments, docks, oil tanks, factories, and residential buildings
