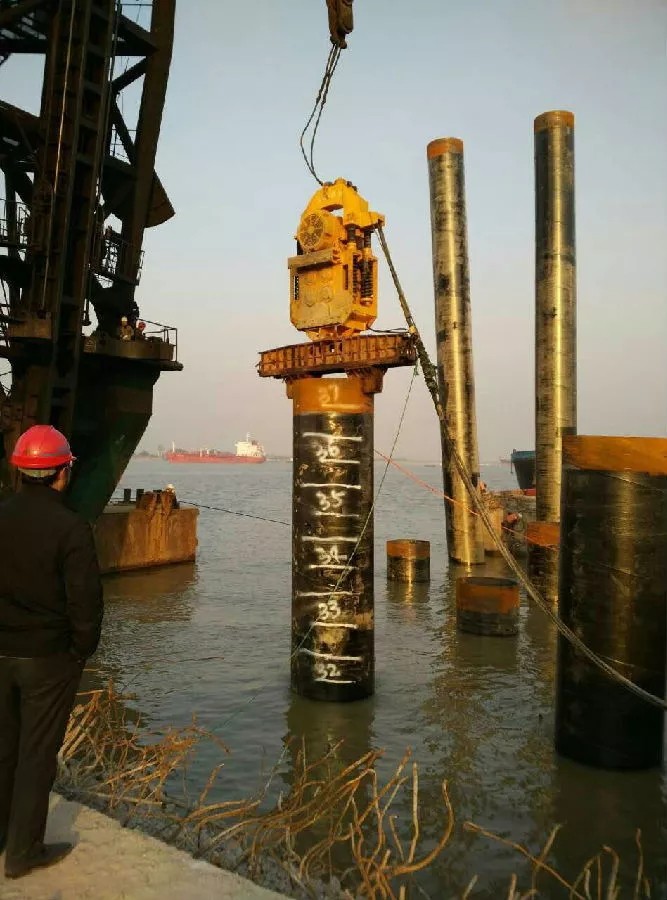

Shanghai Zhenzhong 200 eccentric torque stepless adjustable vibration hammer is used to drive dock piles in Jiangsu province

Shanghai Zhenzhong EP200 eccentric torque stepless adjustable electric drive vibration hammer

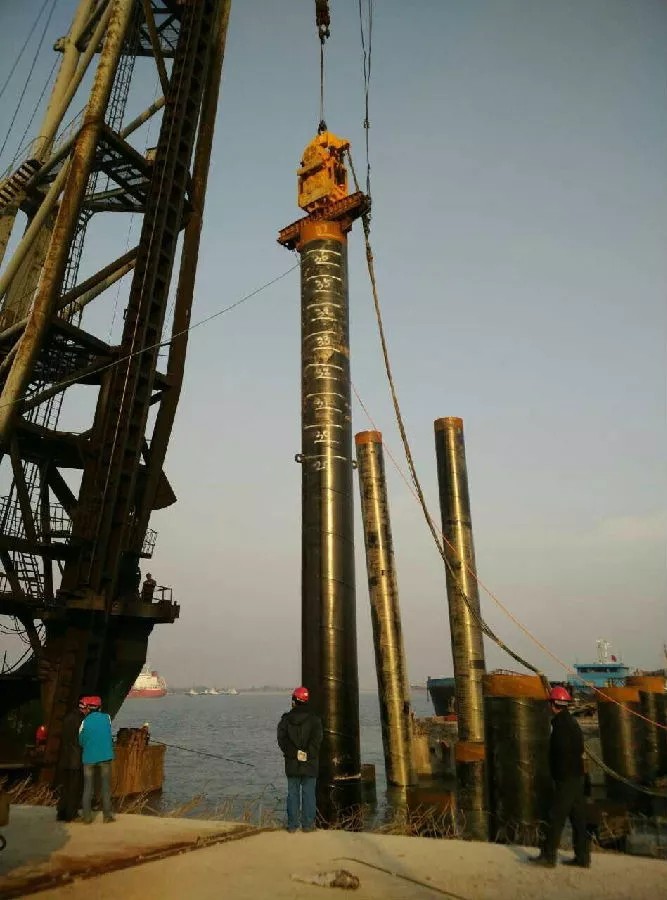

Construction in Zhangjiagang, Jiangsu, quickly and accurately completed a dock pile with a diameter of 1900mm and a length of 37m, with a depth of 28m into the soil.

The EP series eccentric torque infinitely adjustable electric drive vibration hammer has the following characteristics:

1. To start under the condition of no eccentric torque, the power supply only needs to be twice the motor power, while traditional vibration hammers with eccentric torque require three times;

2. Avoid resonance during startup and shutdown;

3. During operation, the eccentric torque can be adjusted arbitrarily to meet the settlement and extraction requirements of different soil layers.
