EP1600 Non Resonant Vibration Hammer Helps Zhanjiang Xuwen Offshore Wind Farm

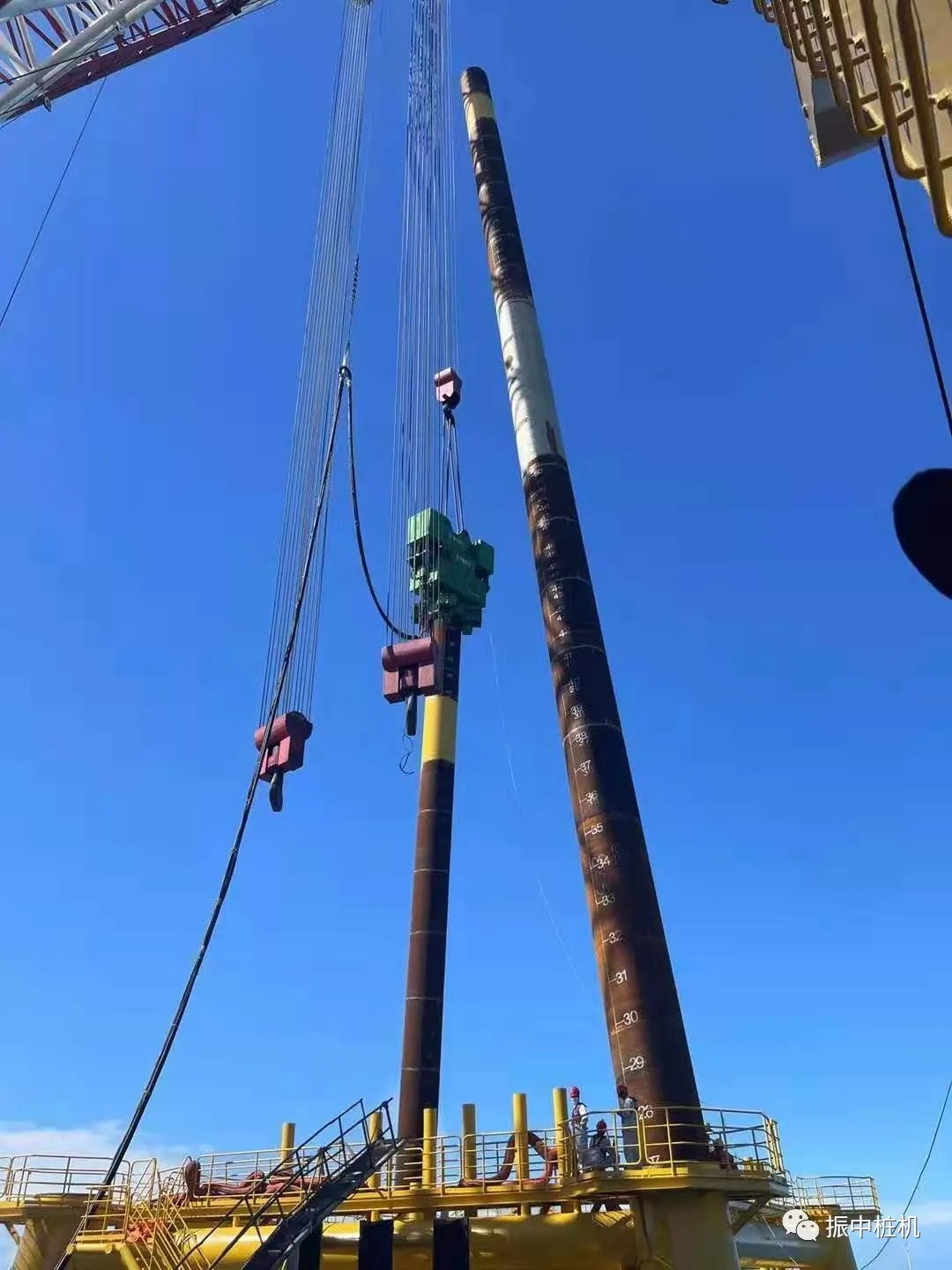

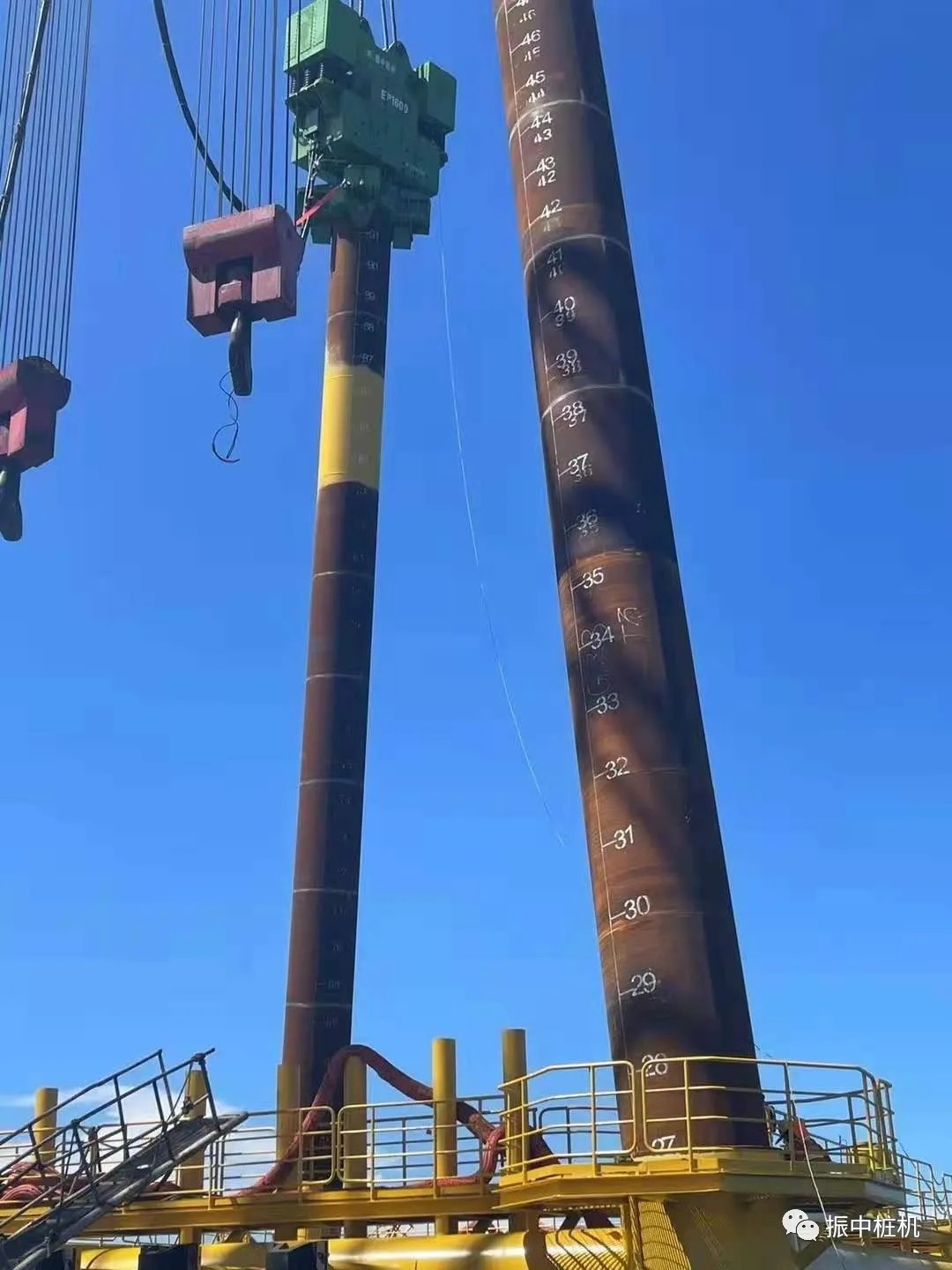

Recently, our company's EP1600 resonance free vibration hammer has successfully started construction on the Xuwen offshore wind power project in Zhanjiang. The foundation project of the offshore wind power booster station platform has been successfully constructed with inclined piles at an angle of 8 degrees. Pile diameter 1800mm, weight 145t, pile length 86m.

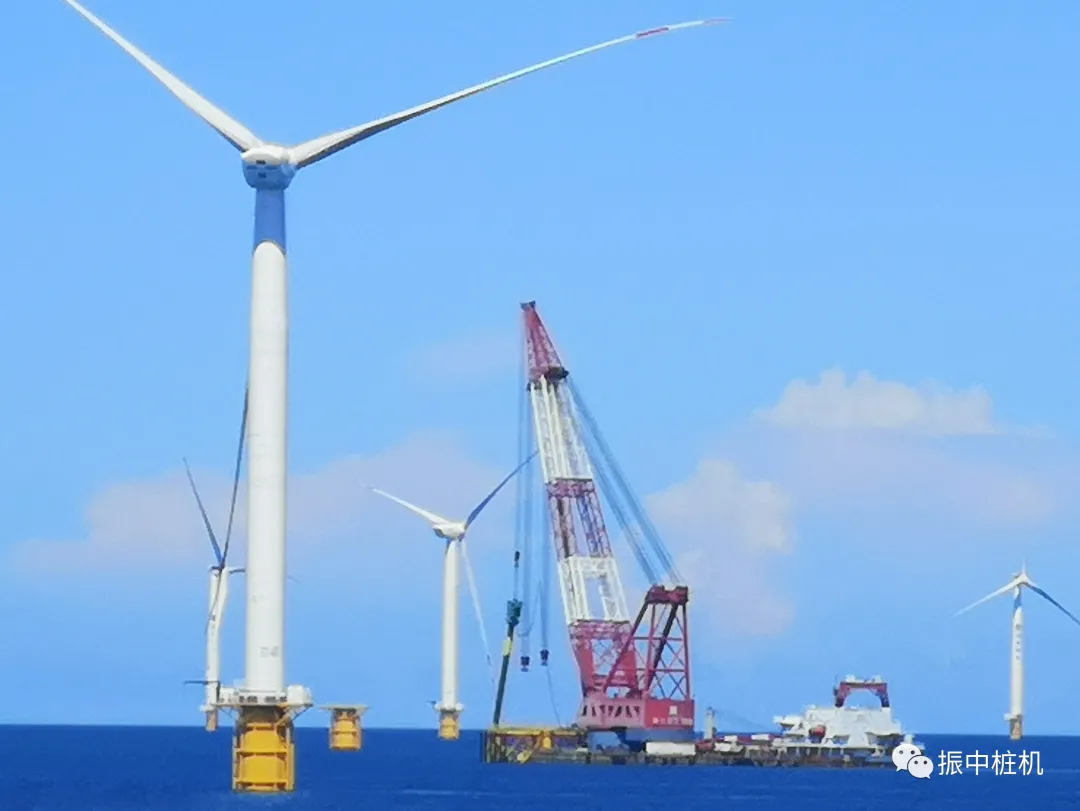

The Guotou Zhanjiang Xuwen Offshore Wind Power Construction Project officially started construction in early 2021, located in Donghai, Jinhe Town, Xuwen County, Zhanjiang City, Guangdong Province. The nearest point of the site is 20 kilometers away from the land reserve in Jinhe Town, and the farthest point is 35 kilometers away from the land reserve.

Although the project was successfully completed, many problems were encountered during the pre sinking process. Firstly, time is tight and tasks are heavy; In order to save construction time and strive to complete the window period in one go, the construction party initially plans to use an impact hammer to directly sink the piles. However, due to the steep slope of steel pipe piles, the longer the pile length, the thinner the wall thickness. If an impact hammer is used, the pile needs to be decoupled, so the safety factor will be greatly reduced, and the impact hammer itself will be heavier. Forcefully sinking piles can easily cause deformation and bending of steel pipe piles, which does not meet construction requirements and results in certain losses. So the project department searched for our company from various sources in society. After multiple discussions on technical solutions, both parties ultimately decided to use the EP1600 vibration free hammer lifting method to directly sink the pile and complete the arduous task.

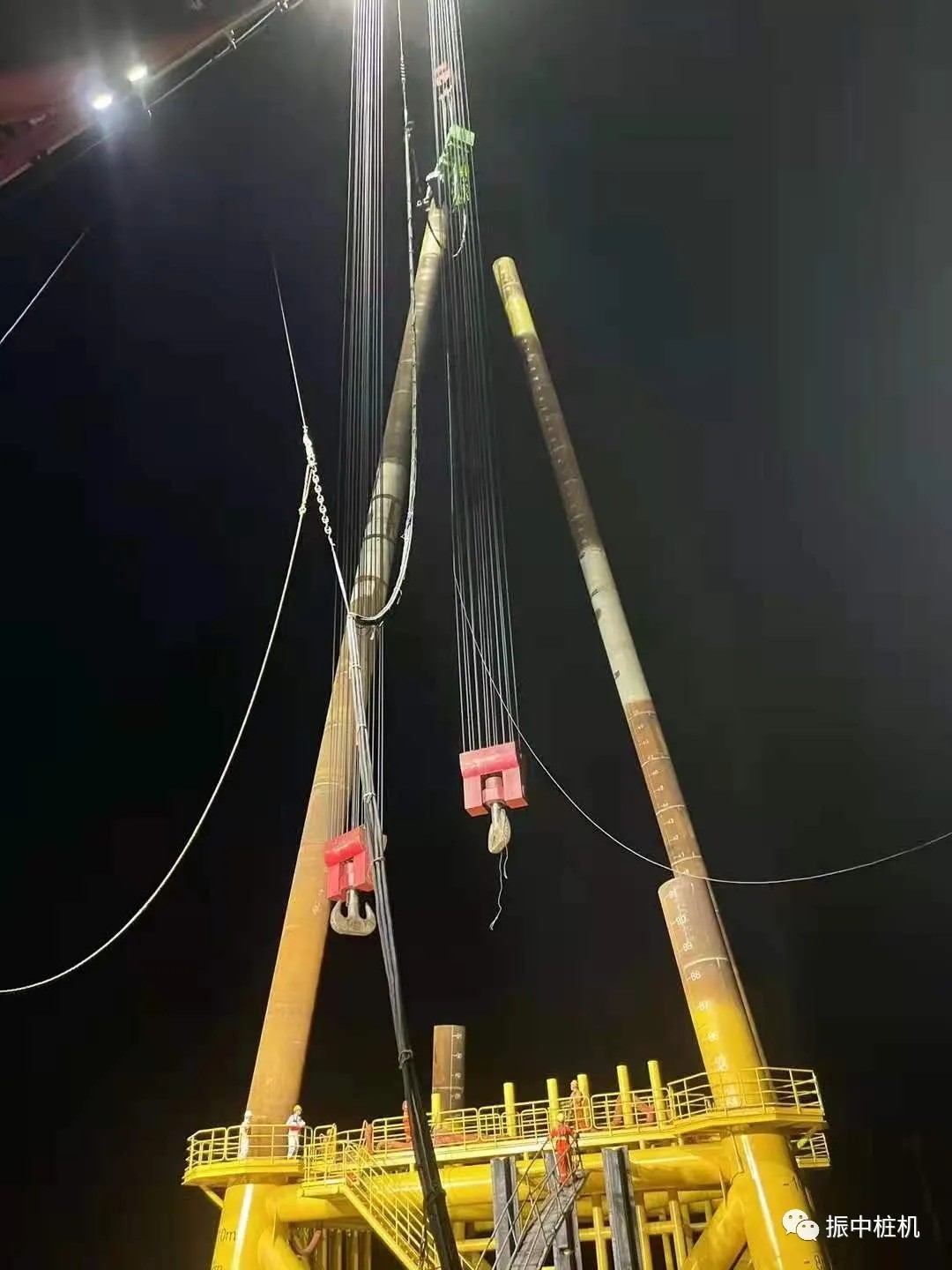

The final plan is finalized, followed by intensive preparation work such as meetings, coordination, delivery, on-site assembly and debugging. With the joint efforts of everyone on site, according to the pre planned plan, the four inclined piles were successfully sunk into the sea, and the task was completed. Our company has also received recognition and praise from the leaders of the project department and various parties.

Let's take a look at why the EP1600 vibration free hammer can drive piles so quickly and smoothly?

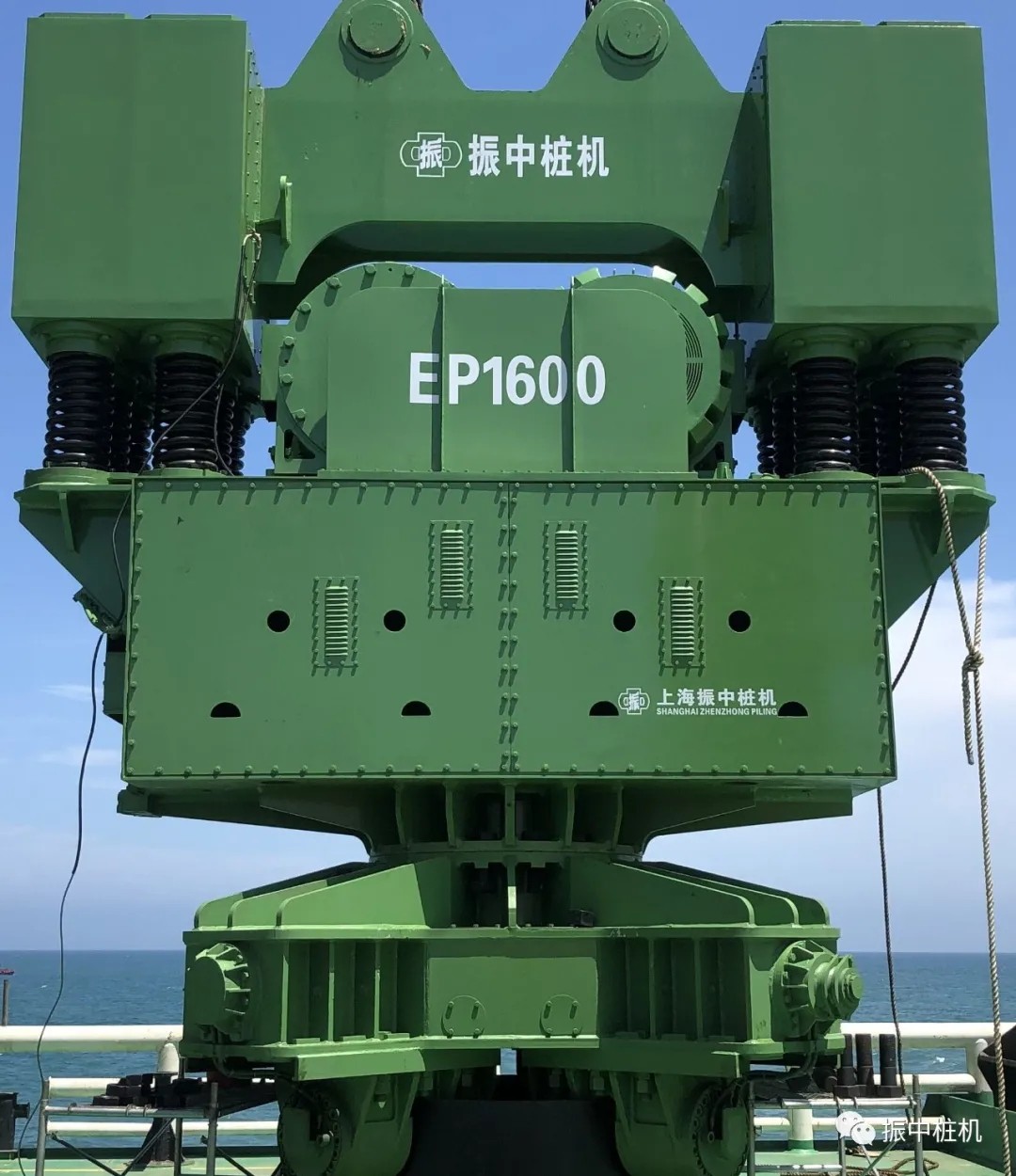

1. Highlights of Large Non Resonant Vibration Hammer:

Reduce startup energy consumption

Zero start, zero stop

Eccentric torque stepless adjustment

Low center of gravity, good stability

Verticality controllable and correctable

Efficient, environmentally friendly, and low-noise

Equipped with a forced lubrication oil pump system

Genuine imported bearing

Maximum 14 degree inclined pile construction

Container type electro-hydraulic integration

2. Compared with other ordinary vibration hammers, large resonance free vibration hammers have the following advantages:

Energy saving, safety, and environmental protection. At present, the mainstream vibration hammers on the market are electrically driven, often using industrial electricity or generator sets as power sources. Ordinary vibrating hammers pose a "resonance" hazard and significant vibration noise factors during startup and shutdown, which limits and reduces their usage ratio. The eccentric torque of the EP hammer is infinitely adjustable. The eccentric torque can be adjusted to "zero" before starting and stopping, allowing the vibrating hammer to start and stop under "zero" excitation force, thus requiring only a small power supply and reducing the number of supporting equipment. Invest, reduce energy consumption, and truly achieve "energy-saving and cost saving".

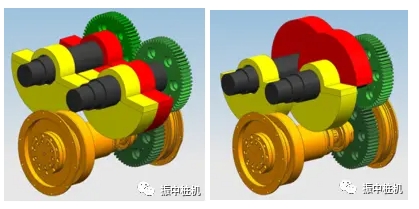

Maximum eccentric torque, eccentric torque is 0

As an outstanding member of the Chinese pile industry enterprise, Shanghai Zhenzhong adheres to connotative development, conquering new markets with technology and strength, holding onto old markets with service and performance, turning the difficult period of market competition into technological innovation, and striving to explore new markets.
