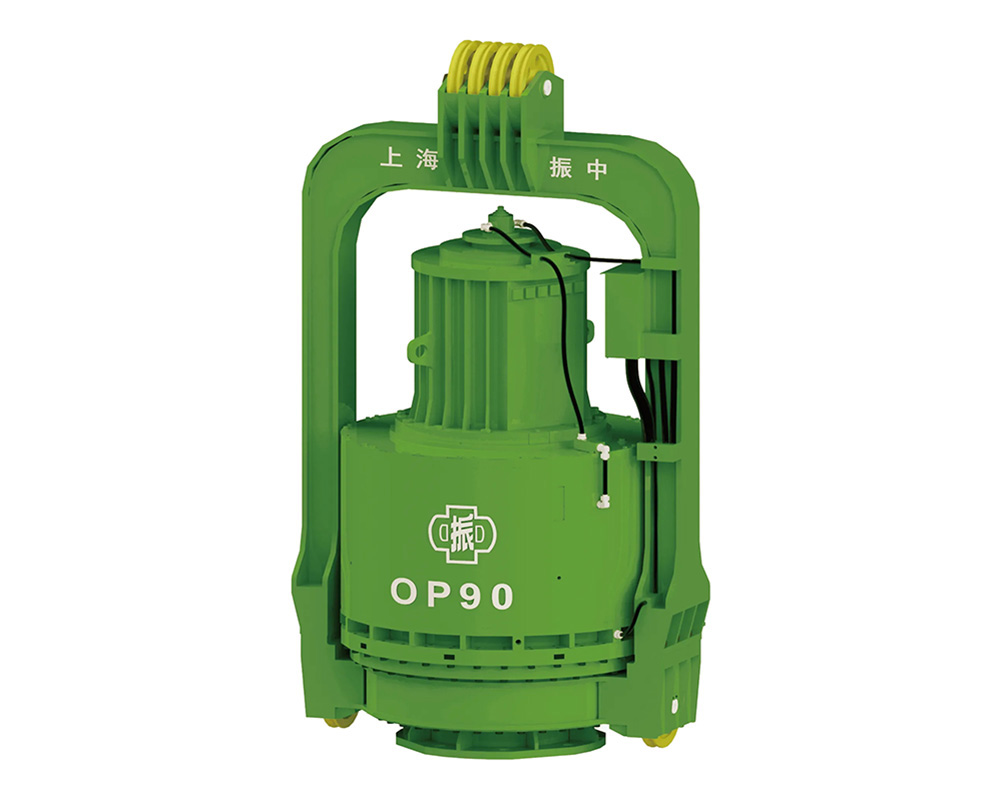

OP Series Vibration-free Impact Oscillating Pile Driver

The OP series oscillating pile driver not only has the advantage of achieving efficient construction by vibrating the liquefied soil with a vibrating pile hammer, but also avoids the difficulties of limited urban construction due to environmental issues such as noise and vibration pollution caused by vibrating pile hammers. It will play an important role in future urban construction.

Product Consultation

Product Introduction

The OP series oscillating pile driver not only has the advantages of vibrating pile hammers to achieve efficient construction by vibrating and liquefying the soil, but also avoids the difficulties of vibrating pile hammers in urban construction due to environmental problems such as noise and vibration pollution. It will play an important role in future urban construction.

◆environment protection

●Zero vibration disturbance, no disturbance to residents - The OP series oscillating pile driver adopts a unique horizontal arc vibration method, greatly reducing the harm to surrounding buildings and minimizing interference with residents' daily lives.

●The measured vibration level of the OP series oscillating pile driver is only 50dB (at a distance of 5 meters)

◆energy conservation

● Adopting an independent eccentric cavity structure, the no-load current is small, effectively reducing energy consumption.

● Without the need to overcome eccentric weight torque, the starting current is small. Compared with traditional vibration pile drivers, the OP series oscillation pile driver can save more than 20% energy under the same pile sinking effect.

◆secure

● Little impact on lifting equipment and surrounding buildings.

Product Parameters

Project	Unit	OP90	OP120	OP180	OP240
Motor power	kW	90	120	180	240
Eccentric mass moment	kg·m	75	150	200	300
Vibration frequency	r/min	980	980	980	980
Exciting torque	kN·m	303	606	640	957
Allowable pile pull force	t	50	50	80	80
Allowable pressure	t	50	50	80	80
Moment of Inertia	kg·m^2	1562	1806	4330	5348
Total mass	kg	9252	10289	20658	23681
Long	mm	2020	2020	2040	2040
Width	mm	1460	1460	1700	1770
High	mm	3702	3952	4100	4560

Application Scope

No vibration disturbance, suitable for construction in vibration-sensitive areas such as urban areas and old city reconstruction.
