FZ inner support pile hanger

The overall size is small and light, and it has the dual insurance functions of mechanical self-locking and hydraulic pressure-maintaining lock, which can more effectively prevent the steel pipe pile from falling out of the pile hanger during the pile lifting process; there is no need to pre-weld the lifting lugs before lifting and feeding the pile, Make the construction safer and more convenient; the front end of the hoist adopts a tapered long guide, which is conducive to horizontal pile feeding, and can prevent the hoist from repeatedly withdrawing from the steel pipe pile due to the ups and downs of the pile feeding process; the auxiliary lifting point and the hoist The center of gravity is the same as the vertical line, and the hoist is more stable when feeding piles, and it is easier to feed piles horizontally; all adopt imported hydraulic systems; safe, stable and reliable;

Product Consultation

Product Advantages


Product Parameters

specification parameters	Project		Unit	FZ260	FZ300	FZ300A
Pile hanger use	Applicable pipe pile inner diameter		mm	2600-3000	3000-3400	3000-3400（连续）
	Applicable pile wall thickness		mm	40-70	40-80	50-80
	vertical safe lifting		t	350	350	400
	vertical maximum load		t	1050	1050	1200
	Horizontal safety lifting		t	200	200	200

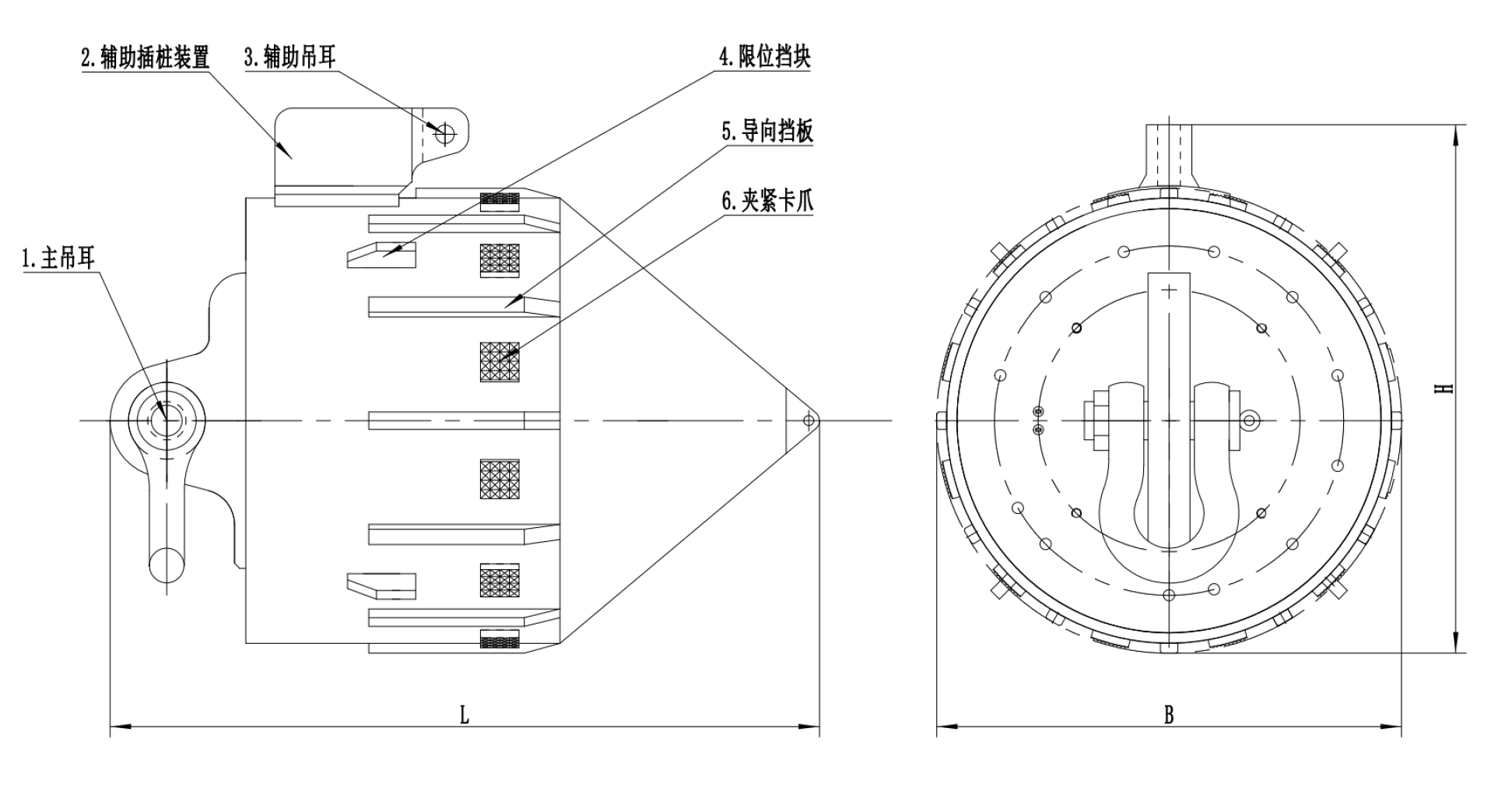

Pile hanger technical	Dimensions	L	mm	3970	4270	4270
		B		2550~2950	2950~3350	2950~3350
		H		3120~3320	3660~3860	3660~3860
	self weight of hanger		t	34~38	45~50	48~53
	hydraulic cylinder pressure		MPa	31.5	31.5	31.5
	clamping force		t	1100	1100	1260
